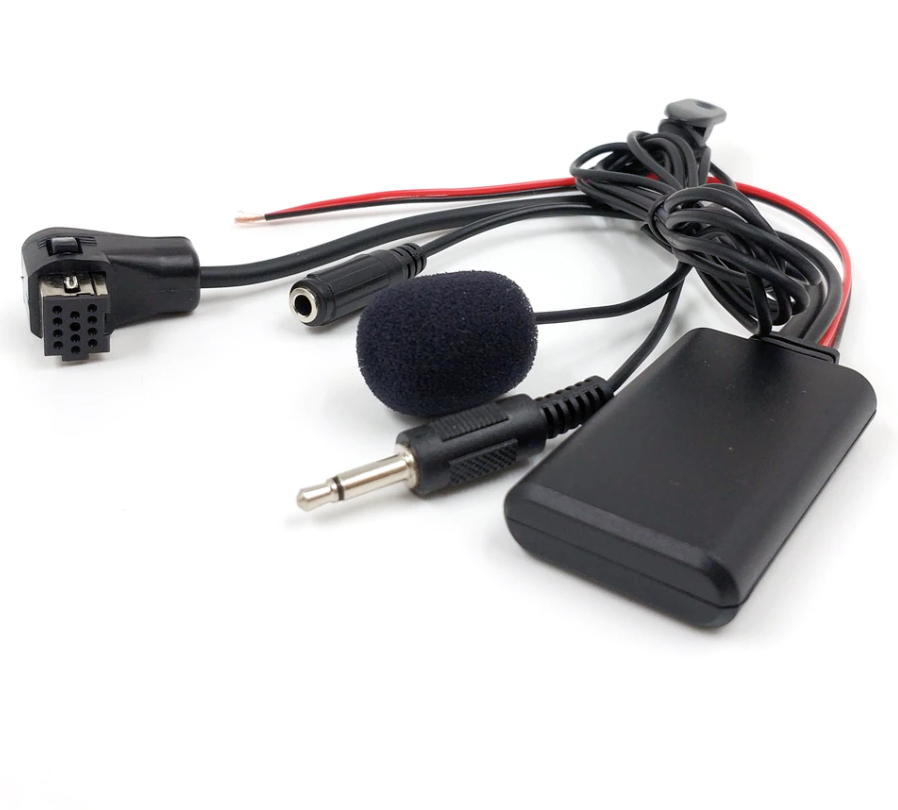

Pioneer IP-BUS Audio Aux Bluetooth Microphone Module Adapter
- Product description: 1. Pioneer IP-BUS audio aux adapter 2. Bluetooth version 5.0 3. Microphone length 150cm
PRODUCT INTRODUCTION
Features:
-Function via Bluetooth-enabled devices.
-No functional limitations of the car radio.
-Allows you to connect an external audio source
-Extend the existing original radio to the wireless music receiver.
-Music playback 10 m distance is possible.
-11Pin IP -BUS plug into the CD player Jack, mobile phone is connected with the Blue tooth module.
-Low power consumption and long working time.
-Suitable for all mobile phone and tablet PC with Blue tooth function.
Item type: For Pioneer Bluetooth Adapter
Blue-tooth version: 5.0
Microphone length: 150cm
Material: plastic+ copper wire
Installation:

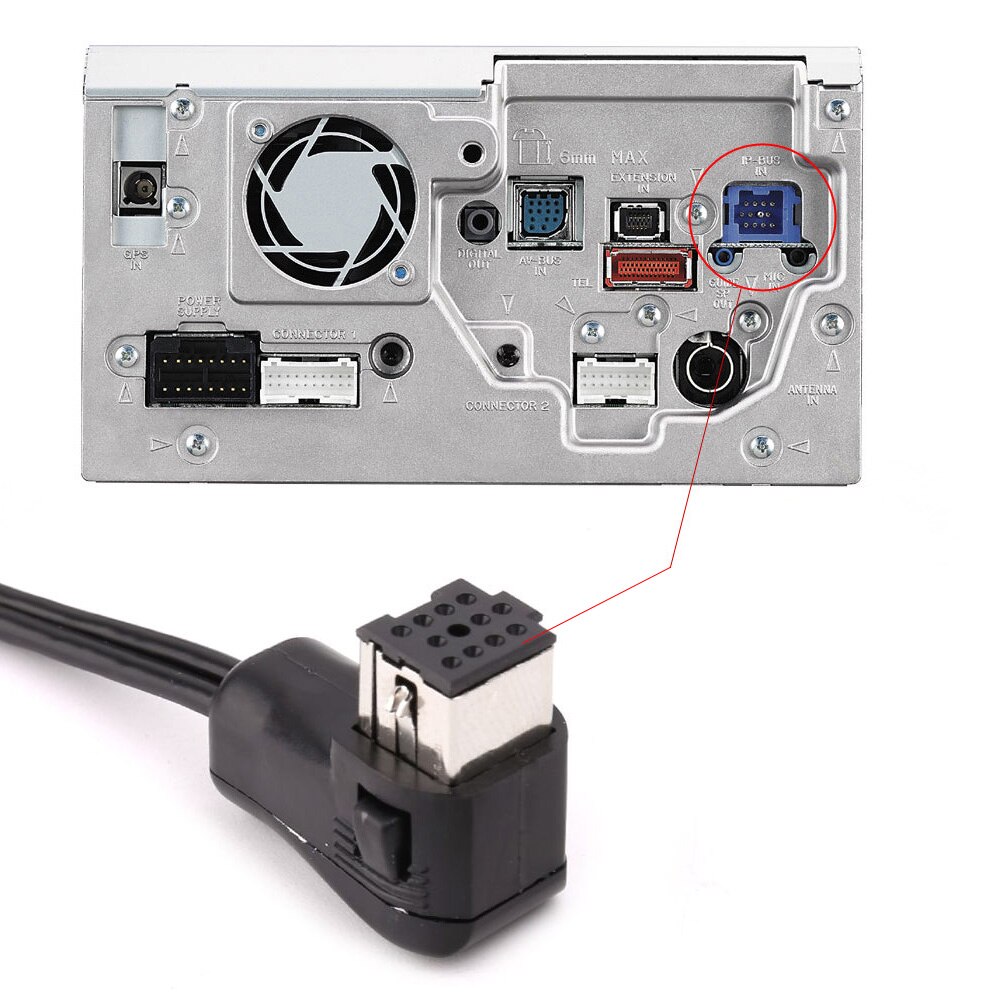

1. Insert 11Pin connector to CD 11Pin IP-BUS IN port.
2. Connect red wire to ACC (positive)
3. Connect black wire to GND (negative)
4. Match the adapter with Phone by blue tooth connecting.
5. Connect the Microphone cable to the module.
6. After that, you can play your phone music and answer calls through car speak.
For example:
•DEH-P2500 R, DEH-P2600 R, DEH-P3500 MP, DEH-P6600 R, DEH-P9600 MP
•DEH-P3100 UB, DEH-P4100 SD, DEH-P5100 UB, DEH-P7100 BT, DEH-P8100 BT
•DEH-P88RS-II-DEHP88RS, etc
It doesn't work with AVH-P series DVD.
